| Brand Name : | XINGHE |
| Certification : | CE,ISO |
| Model Number : | ZLP630,ZLP800 |
| Price : | USD2100 |
| Delivery Time : | 5-7 days |
| Payment Terms : | TT,LC |
| Supply Ability : | 300 sets suspended platform per month |

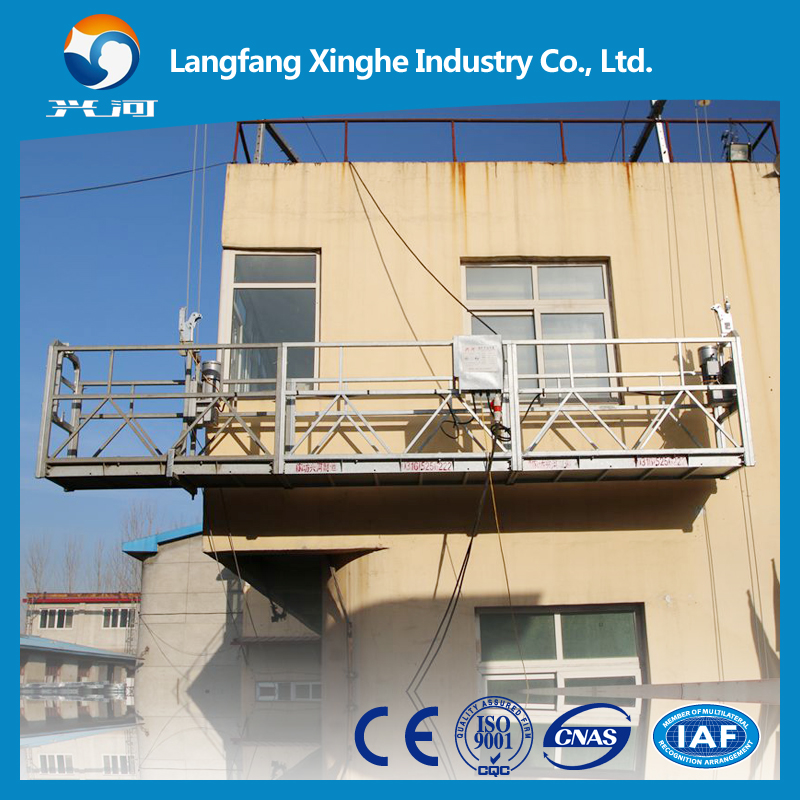

Suspended platforms are designed and constructed in modular form
so it can be mounted in any size from 2-8 meters.
The connection of the individual parts of the structure in each
unit is made with nuts and bolts.
The platform is equipped with wheels for easy movement around the construction site.
The working platform as bolt type and pin type.
Electric cradle machine / suspended platform / construction lift hoist
Steel suspended rope platform ZLP800 / gondola lift / window cleaning machine

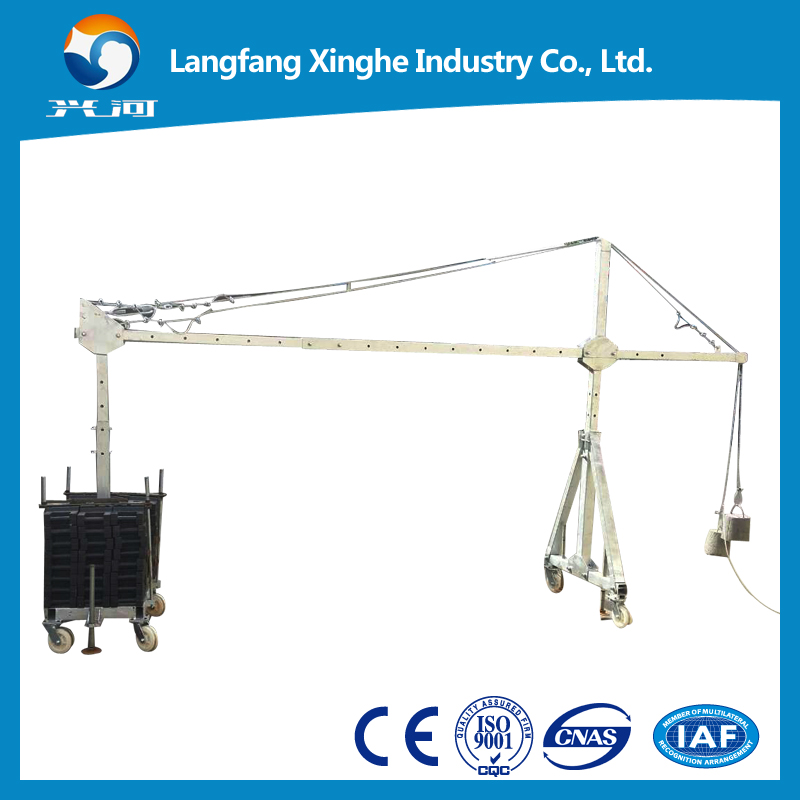

Suspension mechanism of suspended platform
With hot galvanized steel,the suspension mechanism uses 80*80,70*70 square tube,
thickness is 3.75mm, front and rear girder is 2.35mm thickness,
middle girder is 2.48mm, thickness of working platform is 2.2mm.

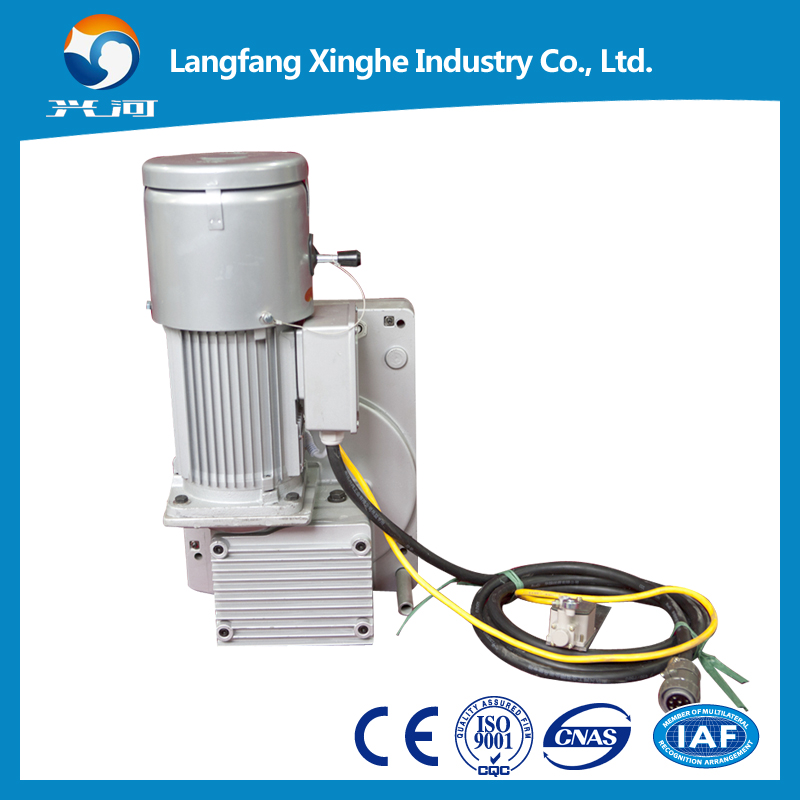

Hoist of suspended platform
With famous brand of motor, large braking torque, unique anti-rope clamping device, when the rope is clamped,the alarming rings,
the motor stops working, so that factor of safety is increased meantime,
maintenance cost of hoist is reduced. Lubrication oil is 220# industry gear oil.
Safety lock of suspended platform
The lock cylinder uses special stainless steel, with strong impact resistance,
higher toughness, wear resistant, long services life,safe and reliable.

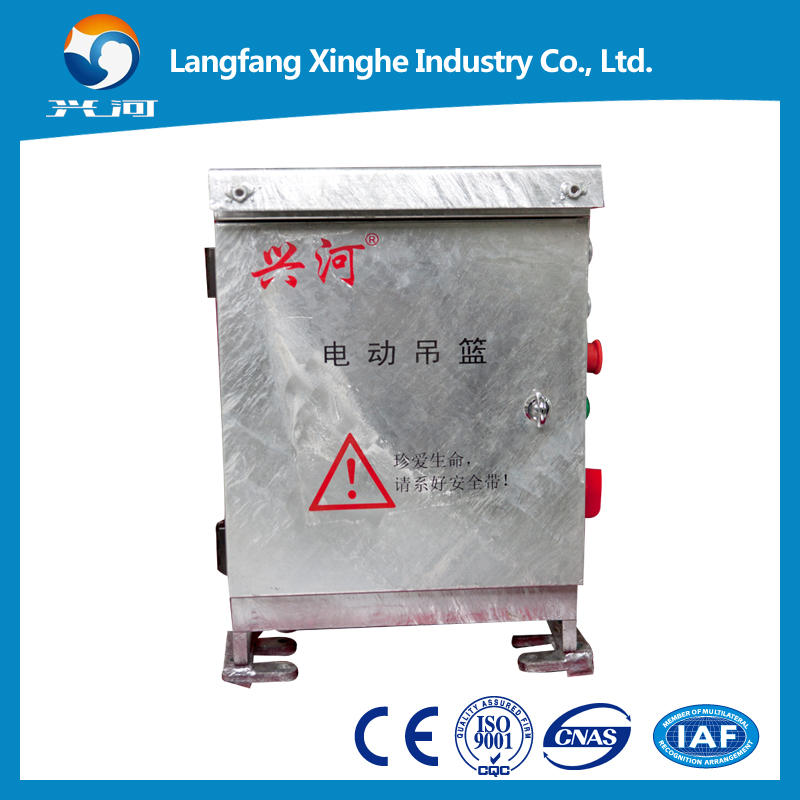

Electric control box
The electric components uses CHNT,SCHNEIDER brand, reliable quality,easy to maintain.
Specification of suspended platform
Item | ZLP630 | ZLP800 | ||
Rated load | 630kg | 800kg | ||
Lifting speed | ~9.5m/min | ~8.5m/min | ||
Platform size (length×width×height) | (2000*3)*690*1180mm | (2500*3)*690*1180mm | ||
Suspension mechanism | Front beam extension | 1.1m-1.5m | ||
Height adjustment | 1.45m-1.75m | |||
Hoist | Type | LTD63 | LTD80 | |
Motor | Type | Customization | Customization | |
Power | 1.5KW | 2.0KW | ||
Voltage | 380V | 380V | ||
Speed | 1400n/min | 1400n/min | ||
Braking torque | 15N·m | 15N·m | ||
Safety lock | Type | LS30 | ||
Angle of tilted locking rope | 3°—8° | |||
Allowable impact force | 30kN | |||
Weight | Working platform | 300kg | 370kg | |
Hoist | 52kg×2 | 56kg×2 | ||
Safety lock | 5.5kg×2 | 5.5kg×2 | ||
Suspension mechanism | 320kg (without counter weight) | 320kg without counter weight) | ||
Electricity box | 18kg | 18kg | ||
Total weight | 812kg | 872kg | ||
Counter weight | 1000kg (25×40pieces) | 1000kg (25×40pieces) | ||
Wire rope | Type | 4×31SW+FC-ф8.3 broken pulling force≥53500N | 4×31SW+FC-ф8.3 broken pulling force≥62500N | |
Cable | Type | 3×2.5+2×1.5YC-5 (one piece) | ||
1. All of the components like hoist motor, safety lock, control box are produced by ourself,
so that quality, delivery and services are very competitive.
2. As a suspended platform factory, the cost of the gondola can be controlled very well, you
can get a more competitive price.
3.Once there are any problems, components can be replaced more quickly than trading compay,
as there are stocks in our factory.
ABOUT US
Langfang Xinghe Industry Co,Ltd, established in 1980 year, is professional in production,sales
and rental of temporary suspended platform in China.
As a market leader and key player in suspended platform&cradle sector, since its establishment,
we focus on facade solutions, high rise building cleaning&maintenance. Our team has long lasting
experience and know how in design and production of suspended platform and related components.
With technique creation, strict inspection,and perfect after-sales services, we are getting more and more domestic and overseas market share.
Our main products includes suspended platform/cradle ZLP630, ZLP800 with its components, hoist,
safety lock, electric control box and other parts. All these components are made in our factory by
our worker, it means stable and competitive quality, delivery and services.
Langfang Xinghe Industry Co,Ltd has advanced processing center, large hydraulic&punching
equipment. With technique creation, strict inspection,and perfect after-sales services, we are getting more and more domestic and overseas market share, and bring
more benefit for our clients in the global.
|
|
