| Model Number : | ZLP630 suspended rope platform |
| Certification : | CE,ISO |
| Payment Terms : | TT,LC, Western Union |
| Supply Ability : | 400 sets gondola per month |
| Delivery Time : | 5-7 days |
Galvanized steel ZLP630 suspended rope platform in India for maintenance
Email: anicali@hrgondola.com
Whatsapp: 0086 15226677167
What your care is quality and after sales service.
What we can do is to offer your goods with installtion and repaire.
The suspended rope platform can be used in building facade cleaning, building maintenance, plastering,
curtain wall installation and other building facade works.
1). ZLP630 suspended rope platform: The whole suspended platform includes side rails and bottom rail is
aluminium, the end stirrup on two sides can be painting steel with different color or galvanzied steel.
2). The working platform is 6 meters, it can be 2+2+2m or as per your request.
3). There are four bottm wheel for suspended platform, to move easily and fast.
4). Also It can be with wall castors to protect the curtain wall.
5). The hoist motor is 1.5kw.
6). Two wire winders can be equiped on each side.
Suspension mechanism of suspended rope platform
With hot galvanized steel,the suspension mechanism uses 80*80,70*70 square tube, thickness is
3.75mm, front and rear girder is 2.35mm thickness, middle girder is 2.48mm, thickness of working
platform is 2.2mm.

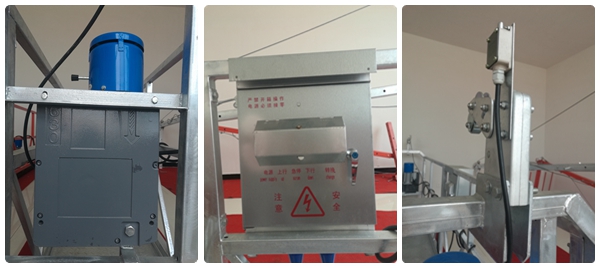

Hoist motor, safety lock and control panel of suspended rope platform
Specification of suspended platform
Item | ZLP630 | ZLP800 | ||
Rated load | 630kg | 800kg | ||
Lifting speed | ~9.5m/min | ~8.5m/min | ||
Platform size (length×width×height) | 6000*690*1180mm | 7500*690*1180mm | ||
Suspension mechanism | Front beam extension | 1.1m-1.5m | ||
Height adjustment | 1.45m-1.75m | |||
Hoist | Type | LTD63 | LTD80 | |
Motor | Type | Customization | Customization | |
Power | 1.5KW | 2.0KW | ||
Voltage | 380V | 380V | ||
Speed | 1400n/min | 1400n/min | ||
Braking torque | 15N·m | 15N·m | ||
Safety lock | Type | LS30 | ||
Angle of tilted locking rope | 3°—8° | |||
Allowable impact force | 30kN | |||
Wire rope | Type | 8.3mm | 8.6mm | |
Cable | Type | 3×2.5+2×1.5YC-5 | ||
Container delivery of ZLP630 suspeneded platform

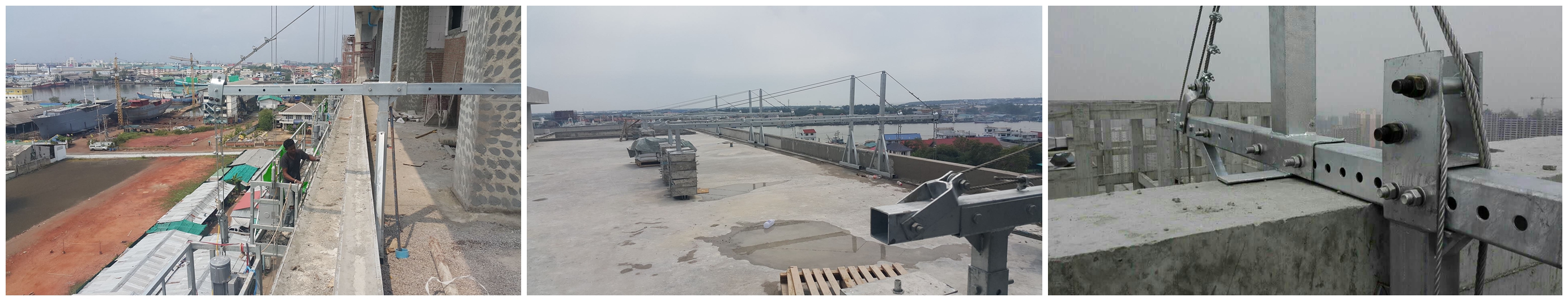

Our ZLP630 suspended platform in the world
